Product Description
1,parameter:

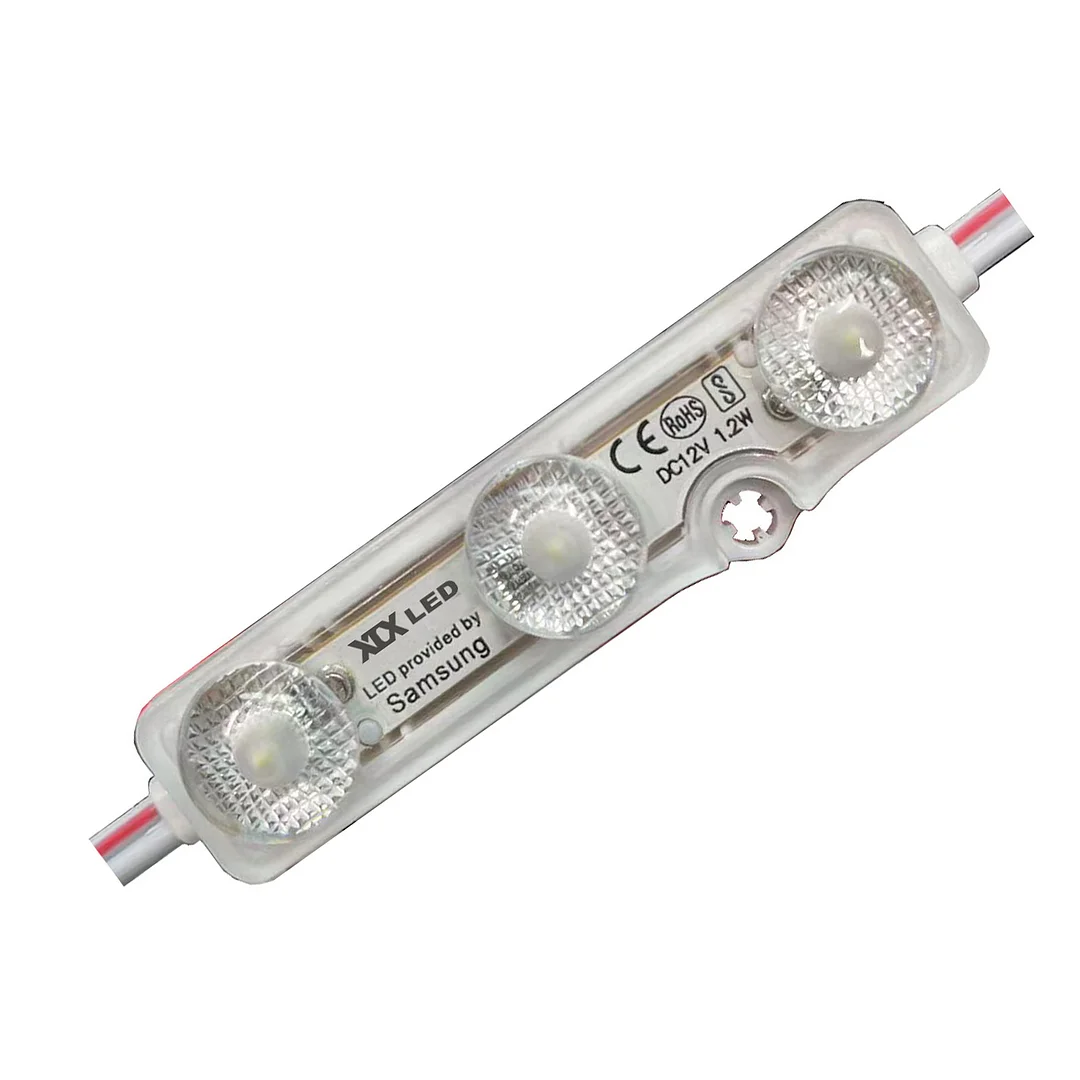

Product model: 6615-2835
Working Voltage:DC12V Input
LED QTY:3leds
Led type: patch 2835led
Power:1.2w
Warranty(Year):5-Year
Support Dimmer:Yes
Lifespan (hours):50000h
LED Chip:Epistar / Samsung
Luminous Intensity:High Intensity
Optical Attenuation:2%
Viewing Angle:170°
Size:66*15mm
Shell material: ABS+PC
Emitting Color:White,Warm white, red, blue, green, yellow,pink
Operating Temperature(℃):-20 - 65
Storage Temperature(℃):-45 - 75
IP Grade:IP68 Waterproof
Packing:50pcs/line 100pcs/bag 2000pcs/CTN
weight:20bag/box
Place of Origin:Guangdong, China
Lighting solutions service:Lighting and circuitry design, auto CAD layout, Onsite metering, Project Installation
2, Application scope:
LED module is mainly used to display the night effect of advertising font (acrylic, blister) and logo. It takes text or logo as the medium and is installed on the top or wall of the building. It can not only show the daytime effect of logo, but also use LED as luminous light source to show another effect at night. It is equipped with LED lighting application control system to carry out dynamic video control of text or logo. In some places with strong entertainment atmosphere, LED light source module has become one of the most important choices for enterprises to show their self-image.
3, Packing instructions:
The company's LED modules are packaged in standard packaging, with anti-static bags and outer cartons as packaging materials (the packaging of modules with different specifications is different, please call for details!), Some protective measures will be taken to ensure the safety of LED modules during transportation.
4, Installation notes:
1. Polarity of LED module: the positive and negative poles of the module correspond to the positive and negative poles of the power supply, that is, the positive pole of the module is connected to the positive pole of the power supply, and the negative pole of the module is connected to the negative pole of the power supply.
2. Working voltage: pay attention to the consistency between the voltage of LED module and the voltage of power supply, which shall not exceed
Design rated voltage.
3. Number of series circuits: each series circuit cannot exceed the maximum number of LED modules connected,
However, it will cause inconsistency in brightness.
4. Use environment: waterproof measures must be taken when the non waterproof module is used outdoors.
5. Installation: LED modules are generally used in luminous words and blister words, so they must be
Ensure that the LED module pasted in the luminous word is firm and reliable, and fix it with screws if necessary.
